Product category：Pan Fiber

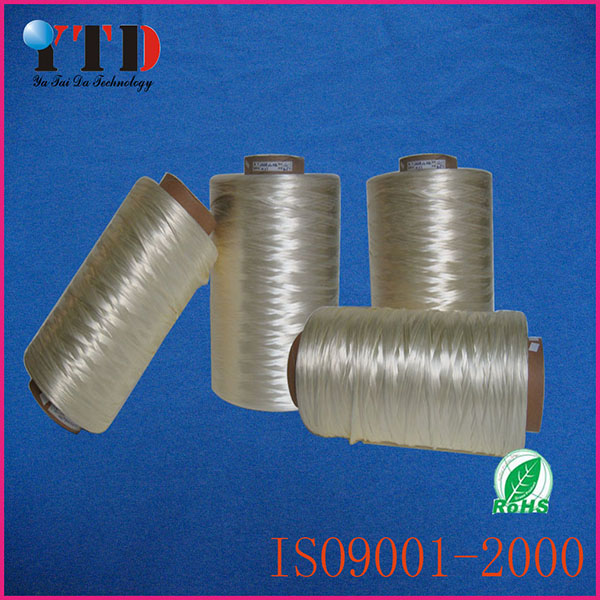

Name：6K PAN Fiber for Carbon Fiber

Model：PCF-6000

Payment：30% T/T in advance,70% T/T against copy of bill of lading.

Delivery：by sea or by air

Package：50kg/bobbin

test1：certificated

test2：certificated

Delivery date：25-45days.

Details

Acrylic PAN fiber is one kind of high purity and high strength fiber.It has higher elastic modulus,tensile strength and anti-UV properties,anti-high temperature and cold performance.It is the best raw material of PAN carbon fiber with surface treatment, Sizing treatment.It is widely used in the fields of Machinery and electronics, aerospace, energy, infrastructure, chemical, household and etc.

SPECIFICATIONS:

ITEM	UNIT	PCF-6000
LINEAR DENSITY	g/m3	0.72±0.03
STRENGTH AT BREAK	cN/dtex	≥5.8
FINENESScv%	%	≤13
ELONGATION AT BREAK	%	12±3
OIL CONTENT	%	1.2± 0.5
DMAC CONTENT	%	≤0.1

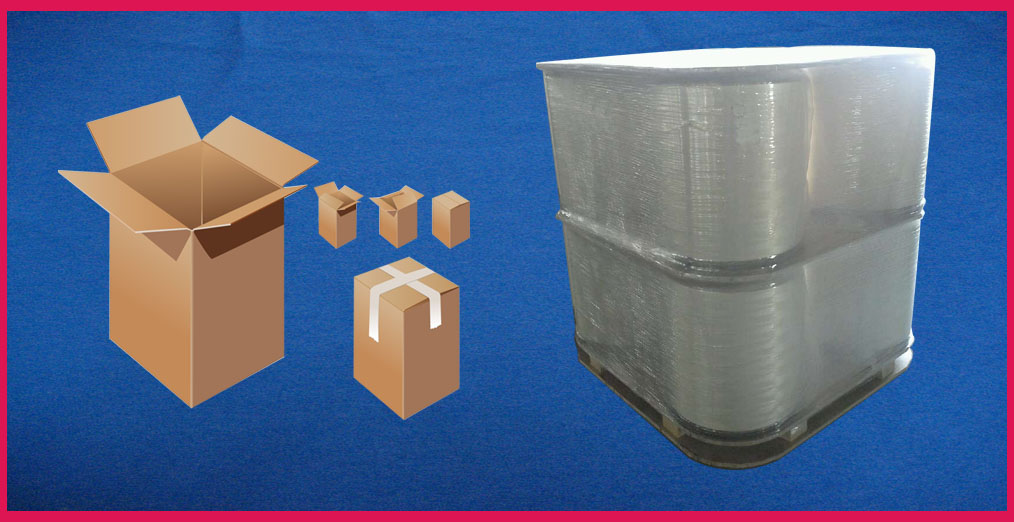

PACKING:
A:pallet:Pallet dimensions 1.1x1.1x1.3m
Scenario 1: Each bobbin 65 kg, 2 layers per pallet, each layer 5 bobbins,40HQ container can load 40 pallets / 26000.00kg
Scenario 2: Each bobbin 90 kg, 2 layers per pallet, each layer 4 bobbins,40HQ container can load 40 pallets / 28800.00kg
B:carton:each carton net weight 50.00kg.gross weight 52.50kg.
