Information

Product category：Pan Fiber

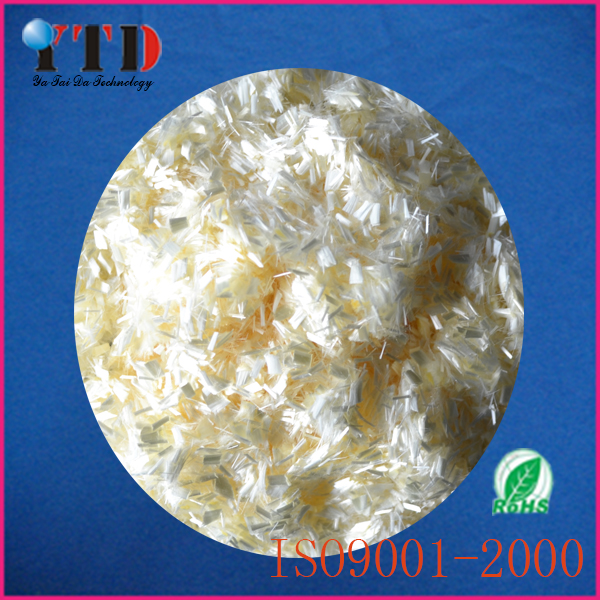

Name：4mm PAN Fiber Chopped Strands

Model：PAN-7-4.0

Payment：30% T/T in advance,70% T/T against copy of bill of lading.

Delivery：by sea or by air

Package：PP woven bag.20kg/bag

test1：certificated

test2：certificated

Delivery date：25-45days.

Details

This kind of PAN fiber chopped strand special for reinforcement of brake pads,brake linings and other friction material.It is the new product for replacing asbestos for environmental protection feature.It was treated by special finishing size which can compound with phenolic resin.

DATASHEET:

Model	PAN-7-4.0
Material composition	100% PAN fiber
Specific Gravity(g/cm3)	1.18
Elastic Modulus(GPa)	7.1~16.3
Tensile strength (MPa)	600-998
Elongation at break (%)	15~25
Length (mm)	4.0
Equivalent diameter (μm)	7
Material shape	Bundle of monofilament
Melting point ( °C )	>230

STORAGE:

The PAN fiber chopped strand should be stored in a dry place,preferably at room temperature and 50-70% relative humidity.

PACKAGING:

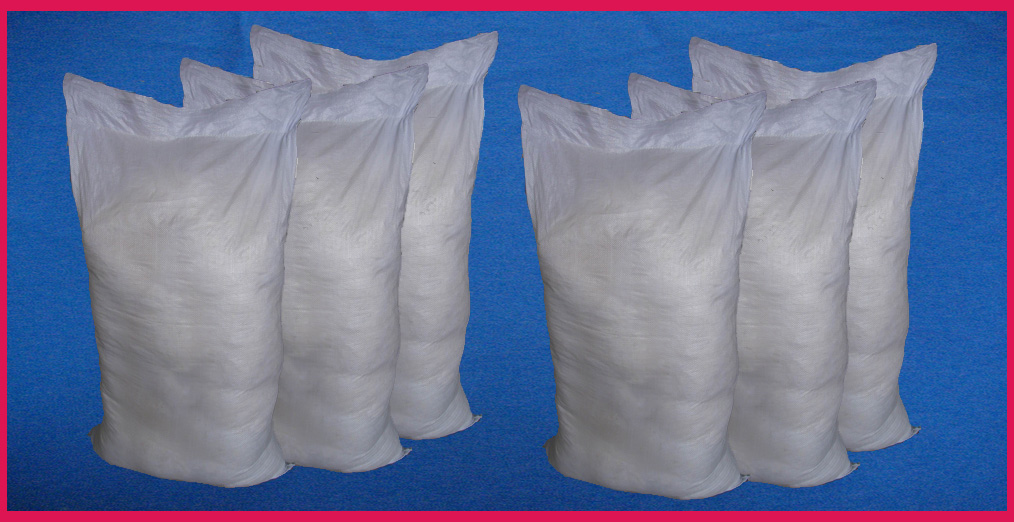

A:PP woven bag:

Net weight:20.00kg,gross weight:20.20kg
